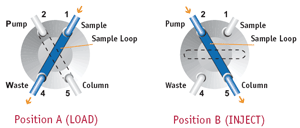

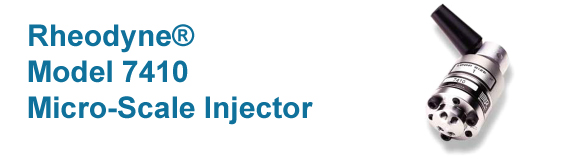

Model 7410 Sample Injection Valve is a single mode injector where by sample is loaded by the complete filling method using a loop filter port. Interchangeable internal loop discs of 0.5-1-, 2-, and 5µL are ideal for micro-LC work. This injector can be used with Rheodyne loop filler port accessories, position sensing switches,and mounting panels.

      The valve has four ports which are threaded to accept Rheodyne^® male nuts and ferrules (compression-type tube fittings) for 1/16" OD stainless steel tubing.
