Available in 6-Port and 10-Port

Two-Position, 3-Way, 4-Way and 6-Position Versions
5,000psig (500bar) Rating
Large-bore Version for Prep

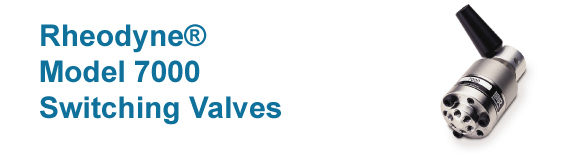

      Rheodyne® Model 7000 HPLC Switching Valves offer an endless variety of ways to simplify switching and injecting. A flat polymer rotor with connecting flow passages bears against a stator under spring pressure sufficient to hold leak-tight at 7,000psig. Standard valves are supplied with 0.024" internal flow passages and are suitable for use with analytical and semi-preparative applications. Large bore valves with 0.040" internal flow passages are available for use at high flow rates (greater than 50mL/min).

      A spring detent mechanism included in the 6-position selection valve permits full circle rotation in either direction and ensures that the rotor “falls into” each of the six positions at the precise 60o spacing.

      Typical applications include two column selection, pre-column backflushing, column programing, column backflushing, tandem five columns selection.
