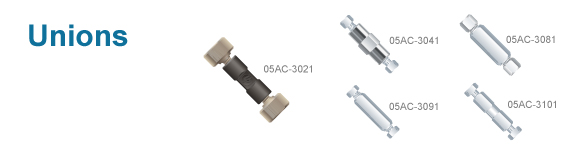

Unions


Upchurch Scientific® PEEK Zero-Dead Volume (ZDV) Unions come complete with two Fingertight Fittings for 1/16” OD tubing and 10-32 port and are pressure rated
to 6,000 psi

SS Zero-Dead Volume (ZDV) unions are precision machined from 316 stainless steel, carefully passivated, then thoroughly rinsed. Each comes complete with stainless steel nuts and ferrules, and is rated to 10,000 psi when wrench tightened.


Tee & Crosses

PEEK Tees and Crosses include high pressure PEEK Fingertight Fittings — allowing maximum operating pressures to 3,500 psi when used with 1/16” OD PEEK, titanium or stainless steel tubing. They can also operate in lower pressure applications using other
tubing such as Teflon® or Tefzel® (ETFE).

316 stainless steel Tees and Crosses come complete with 10-32 fittings for use with 1/16” OD tubing and 10-32 port and are rated to 10,000 psi. They are also compatible with Parker, Valco, and Swagelok® male fittings.
